Rumah Penyerap Film Jatuh Grafit

Absorber Film Jatuh Grafit Cangkang & Tabung Industri

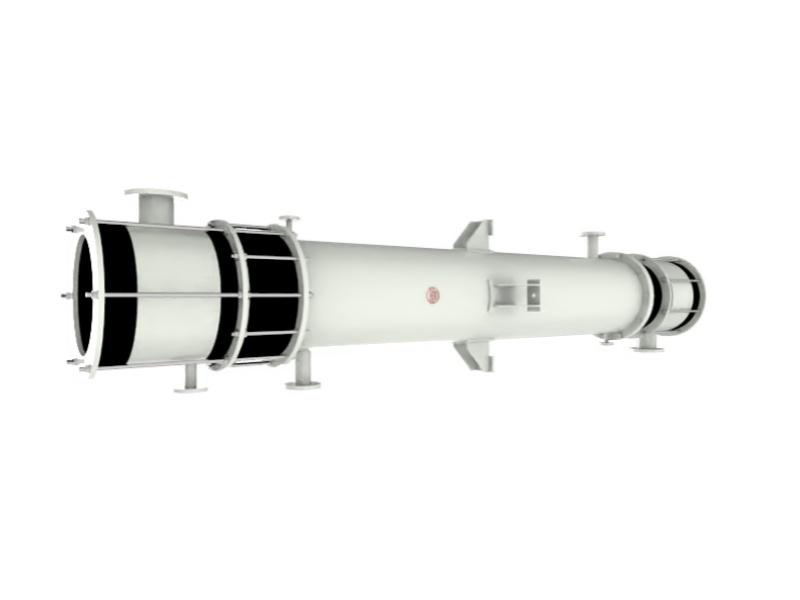

GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber
GX type falling film shell and tube graphite absorber

Absorber Film Jatuh Grafit Cangkang & Tabung Industri

Penyerap film jatuh grafit cangkang dan tabung adalah perangkat khusus yang digunakan dalam berbagai aplikasi industri karena sifat ketahanan termal dan kimianya yang sangat baik. Penyerap ini dirancang untuk menyerap gas secara efisien sekaligus menyediakan proses pendinginan dan pemisahan yang efektif.

  • Pembayaran:

    TT L/C PayPal Westunion Moneygram

  • Asal Produk:

    China， Anhui province

  • Warna:

    white

  • Pelabuhan Pengiriman:

    shanghai

  • Waktu tunggu：

    1 month

  • Moq:

    1

  • Kemasan:

    wooden case

  • Warna:

    white

  • Bahan:

    graphite

  • Suhu kerja:

    ≤170℃

  • Tekanan kerja:

    Tube≤0.1MPa Shell≤0.3MPa
Tanyakan sekarang



Graphite Heat Exchanger

Product review

This equipment primarily consists of a liquid distributor, a cooling and absorption section, and a gas-liquid separator. It features high absorption efficiency, high absorption intensity, high product acid concentration, low outlet temperature, convenient operation and control, and the absence of the need to cool and dry the raw gas.





graphite Block Heat Exchanger
  • Product advantages
  • 1. High Structural Strength: The graphite structure offers remarkable mechanical strength and long-lasting durability.
  • 2. Good Thermal Shock Resistance: Capable of withstanding abrupt temperature variations without incurring substantial damage.
  • 3. Easy Maintenance: Thanks to its modular design, damaged sections can be swiftly replaced, thereby minimizing downtime and maintenance expenses.

Parts Details

1 Parts details 10 Graphite sieve plate
2 Concentrated acid inlet 11 Cooling water outlet
3 Dilution water inlet 12 Vent
4 Upper cover plate of equipment 13 Equipment support
5 Graphite upper head 14 Shell
6 Cooling water outlet 15 Graphite heat exchange block
7 Graphite mixing chamber cylinder 16 Drain port
8 Graphite mixing outdoor cylinder 17 Cooling water inlet
9 Cooling water inlet 18 Graphite lower head



Structure Size

Model D n-Φ H H1 H2 H3 H4 H5 H6 H7 H8 H9 L1 L2 L3 L4
GX245-3 553 2-18 4254 380 355 1521 464 185 270 285 825 300 273 273 259 276
GX300-5 572 2-18 4309 380 365 1566 494 200 305 295 825 300 308 303 286 304
GX 350-10 623 2-23 4374 380 365 1631 534 225 350 315 835 300 333 328 310 329
GX 450-15 725 2-23 4496 400 375 1713 599 257 402 345 885 300 383 378 370 379
GX 500-20 775 2-23 4591 400 395 1798 644 297 477 355 905 300 415 405 407 404
GX 550-25 826 2-30 4658 400 395 1865 709 299 499 400 905 300 451 446 432 429
GX 600-30 898 4-30 4793 400 445 1920 749 354 539 416 950 300 476 471 460 456
GX 650-35 948 4-30 4920 470 475 1947 769 361 546 439 1055 375 501 496 491 481
GX 700-40 998 4-30 5025 470 485 2042 2042 844 391 476 1075 375 531 521 516 506
GX 800-50 1099 4-30 5102 470 485 2119 894 418 653 506 1105 375 581 571 566 556
GX 850-60 1150 4-30 5240 540 500 2180 920 450 680 520 1190 540 651 631 620 581
GX 900-80 1200 4-30 5300 540 520 2240 960 480 700 540 1210 540 702 682 670 608
GX 1000-100 1300 4-30 5360 540 540 2320 1000 520 720 560 1230 540 804 784 770 658
GX 1100-120 1433 4-30 5400 540 560 2400 1060 560 740 580 1250 540 906 886 870 708





Applications

 Shell and tube graphite falling film absorbers are versatile and robust devices designed for efficient gas absorption and heat exchange in demanding industrial environments. Their unique construction and features make them an ideal choice for applications where reliability, durability, and performance are critical.

Industrial Use: Commonly used in industries such as chemical processing, pharmaceuticals, and environmental protection for gas absorption and cooling processes.

Gas Absorption: Particularly effective for absorbing gases like HCl, SO2, NH3, P2O5, and H2S, making it a valuable tool in pollution control and waste gas treatment.
